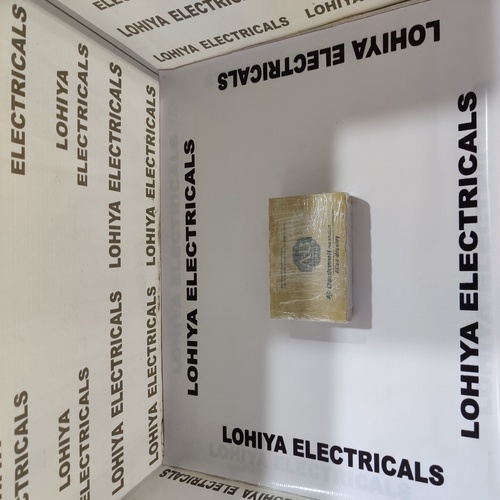

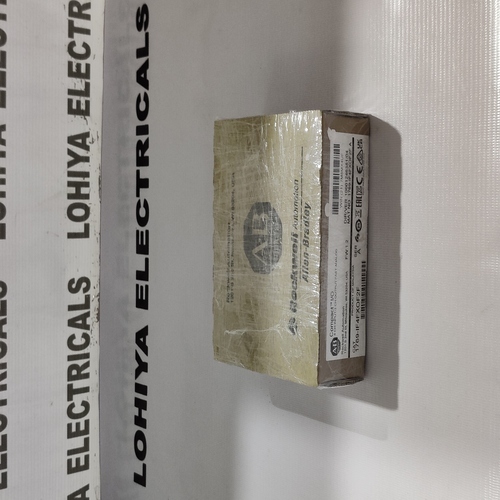

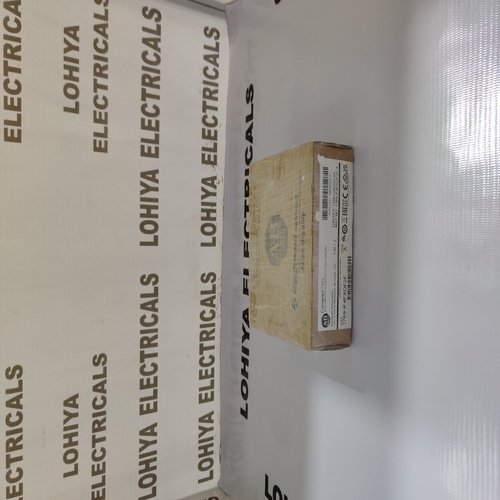

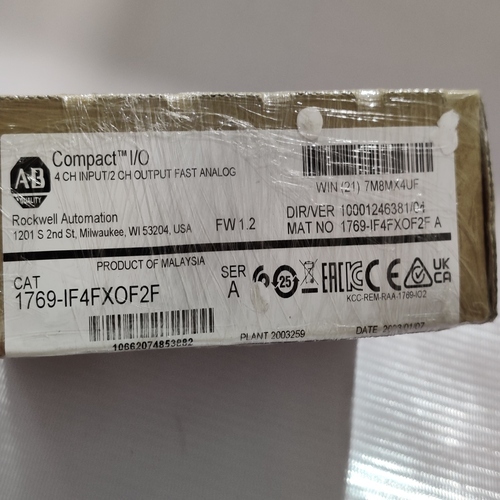

ALLEN BRADLEY 1769-IF4FXOF2F COMPACT ANALOG I/O MODULE (NEW FACTORY SEALED)

Send Inquiry

Request To Call Back

ALLEN BRADLEY 1769-IF4FXOF2F COMPACT ANALOG I/O MODULE (NEW FACTORY SEALED)

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 1769-IF4FXOF2F COMPACT ANALOG I/O MODULE (NEW FACTORY SEALED) Specification

Panel Type
NA (Chassis / Panel mounting)

Protection Level
IP20 (when installed in enclosure)

Rated Operation Voltage
30V DC max

Thickness
87 mm (height including mounting tabs)

Rated Insulation Voltage
Basic Insulation

Operating Voltage
24V DC Nominal (I/O power supply)

Current Rating
450 mA @ 5V DC

Components
4 Analog Inputs, 2 Analog Outputs, Front Terminal Block

Cover Material
Plastic

Cooling System
Natural convection

Features
Multi-signal analog I/O, High accuracy, Removable terminal block

Protection Class
Class I

Base Material
Plastic

Control System
MicroLogix 1500 or CompactLogix Series

Connectivity Type
Removable Terminal Block

Rated Current
450 mA @ 5V DC

Way
Module

Product Type
Compact Analog I/O Module

Material
Plastic Housing with Electronic Components

Surface Finish
Matte

Standard
Rockwell Automation/Allen-Bradley Standard

Surface Color
Gray

Rated Voltage
30V DC max (Backplane)

Frequency (MHz)
DC Module (N/A)

Maximum Output Current
450 mA (Backplane) at 5V DC

Dimension (L*W*H)
118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in)

Application
Industrial Automation / PLC Expansion

IP Rating
IP20 (when installed)

Display Type
No Display

Module Location
DIN rail or panel mount

Output Signal Range
Voltage: 0-10V DC, 10V DC; Current: 0-21 mA

Number of Outputs
2 (Individually configurable for voltage or current)

Resolution
16 bits for input, 15 bits plus sign for output

Isolation Voltage
No Isolation between channels; 30V (continuous), Basic Insulation

Operating Temperature
0 to 60C (32 to 140F)

Accuracy
0.1% of full scale at 25C

Input Impedance
Voltage input: >1M; Current input: 250

Output Load
Voltage: 1k; Current: 500

Module Type
Analog Input/Output Module

Relative Humidity
5% to 95% non-condensing

Storage Temperature
-40 to 85C (-40 to 185F)

Input Signal Range
Voltage: 0-10V DC, 10V DC; Current: 0-20 mA, 4-20 mA

Number of Inputs
4 (Individually configurable for voltage or current)

About ALLEN BRADLEY 1769-IF4FXOF2F COMPACT ANALOG I/O MODULE (NEW FACTORY SEALED)

Procure the superlative ALLEN BRADLEY 1769-IF4FXOF2F Compact Analog I/O Module, a pristine addition to your automation setup. Newly factory sealed, this ultimate module features four individually configurable inputs and two outputs for voltage or current applications, catering to versatile industrial demands. Engineered for high-accuracy analog control, it boasts 0.1% full-scale precision and 16-bit resolution. Reserve your competitive edge with a clearance stock of modules designed for seamless integration into MicroLogix 1500 or CompactLogix systems. Ideal for those seeking reliable, high-performance PLC expansion solutions in India.

Comprehensive Automation Performance

The ALLEN BRADLEY 1769-IF4FXOF2F Compact Analog I/O Module thrives in industrial automation environments, ensuring pristine signal integrity across application surfaces. Its primary competitive advantage lies in individually configurable channels for both voltage and current, delivering operational flexibility. Suitable for deployment on DIN rails or panel mounts, this module is engineered for superior system expansion and reliability, making it an ultimate solution for professional use in process control or factory automation.

Sample Policy and Delivery Assurance

Sample policy allows for evaluation before bulk procurements. With robust supply ability, modules are handed over to trusted transport services for swift shipping across India. Orders are shipped promptly, securely sealed to retain pristine condition. Payment terms are streamlined for trader and supplier convenience, ensuring smooth transaction processing. Whether you require single or bulk units, the supply chain is optimized for reliable delivery, guaranteeing that every order reaches clients in a timely and protected manner.

FAQs of ALLEN BRADLEY 1769-IF4FXOF2F COMPACT ANALOG I/O MODULE (NEW FACTORY SEALED):

Q: How can I configure the inputs and outputs of the 1769-IF4FXOF2F module?

A: Each of the four inputs and two outputs can be individually configured for either voltage or current, allowing for customized integration with a variety of industrial sensors and actuators.

Q: What are the benefits of using the 1769-IF4FXOF2F module in an automation system?

A: This module offers high accuracy (0.1% full scale at 25C), advanced signal range options, and seamless compatibility with MicroLogix 1500 and CompactLogix controllers, enhancing system flexibility and performance.

Q: When will my 1769-IF4FXOF2F order be shipped after purchase?

A: Once your order is placed and payment is processed, the module is handed over to transport services and shipped promptly, ensuring quick delivery while maintaining the factory-sealed condition.

Q: Where can the module be installed in my system?

A: The 1769-IF4FXOF2F is designed for easy installation on a DIN rail or directly on a panel, accommodating various industrial enclosure types.

Q: What process should I follow for sample requests or bulk procurement?

A: To request samples or reserve bulk units, contact your supplier or trader. Samples are provided for assessment, and upon approval, larger orders can be processed with streamlined payment and shipment procedures.

Q: How does the protection rating of IP20 benefit module usage?

A: The IP20 protection rating, when installed in an enclosure, safeguards the module against solid objects, ensuring long-term reliability in industrial environments.
