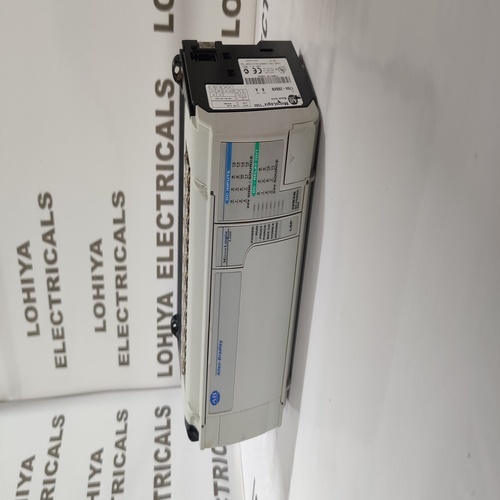

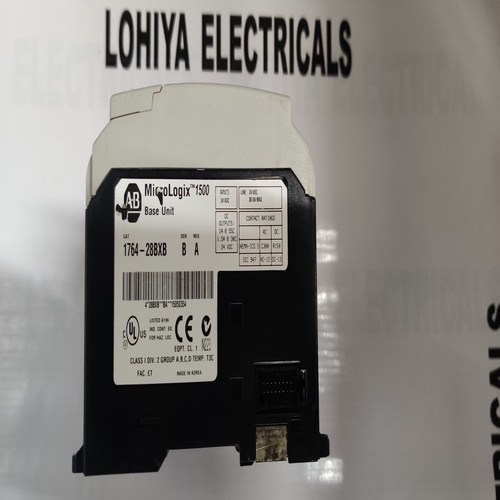

ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT

Send Inquiry

Request To Call Back

ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT

Get a Price/Quote

ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT Specification

Protection Level
IP20

Cover Material
Polycarbonate

Protection Class
Class I

Cabinet Material
Polycarbonate/ABS Blend

Cooling System
Natural Air Cooling

Rated Current
8A Total Output per Module

Way
28 Point (16 Digital Inputs, 12 Digital Outputs)

Thickness
Standard Unit Housing

Panel Type
DIN Rail/Panel Mount

Control System
Programmable Logic Controller (PLC)

Features
Removable Terminal Blocks, Expansion Capable, High-Speed Inputs, LED Indicators

Components
Base unit with terminals, status LEDs

Current Rating
8A

Base Material
Polycarbonate Plastic

Connectivity Type
Screw Terminal Blocks

Rated Operation Voltage
24V DC

Operating Voltage
24V DC

Rated Insulation Voltage
500V AC (for insulation)

Product Type
Base Unit for MicroLogix 1500 PLC

Material
Plastic and Metal (Industrial Grade)

Surface Finish
Matte

Standard
IEC, NEMA, UL, CE

Surface Color
Gray

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
2A per point (max total output 8A)

Dimension (L*W*H)
180mm x 87mm x 87mm (Approx.)

Application
Industrial Automation, Machine Control, Process Control

IP Rating
IP20

Display Type
Status LED Indicators

Digital Input Type
Sink/Source

Shock Resistance
30G

System Power Consumption
8W max

Expansion Capability
Supports 1764 Series Expansion Modules

Storage Temperature
-40°C to 85°C

Mounting Type
DIN Rail or Panel Mount

Input Points
16 (24V DC)

Vibration
10-55 Hz, 0.5 mm amplitude

Operating Temperature
0°C to 60°C

Relative Humidity
5% to 95%, non-condensing

Weight
Approx. 650 g

Output Points
12 (Relay)

Digital Output Type
Relay

About ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT

Unlock the potential of your industrial automation systems with the ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT. Grab this stellar PLC solution, featured for its superior expansion capability supporting 1764 Series Expansion Modules. Designed for durability, it boasts a robust shock resistance of 30G and operates efficiently across varied environments. With 16 digital inputs, 12 relay outputs, IP20 protection, and compliance with IEC, NEMA, UL, and CE, it delivers the finest reliability in process and machine control. Experience the advantage of removable terminal blocks, high-speed inputs, and LED status indicators. Built with premium polycarbonate for industrial strength, this unit ensures optimal performance and longevity.

Stellar Construction and Competitive Advantages

The ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT stands out for its robust polycarbonate plastic housing and Class I protection. Designed for industrial automation, it offers outstanding shock and vibration resistance, superior expansion support, and leading thermal tolerances. Removable terminal blocks and status LED indicators offer practical operational benefits, ensuring installation ease and reliable monitoring. This units material quality and flexibility in DIN rail or panel mounting make it a superior choice for demanding industrial applications.

Express Shipping and Export Excellence

Charge ahead with efficient global distribution of the ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT. Available at competitive FOB ports across India, this product is expertly dispatched to main export markets such as Asia, the Middle East, and Europe. Each base unit is meticulously packaged to ensure damage-free transit, with express shipping options available for timely delivery. Your orders are handled with precision, ensuring rapid dispatch and secure packaging, meeting stringent international shipping standards.

FAQs of ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT:

Q: How does the ALLEN BRADLEY 1764 28BXB MICROLOGIX 1500 BASE UNIT support system expansion?

A: This base unit is expansion capable, supporting the 1764 Series Expansion Modules for added flexibility and scalability, allowing you to tailor your control system as your application requirements grow.

Q: What are the main competitive advantages of choosing this PLC for industrial automation?

A: The 1764 28BXB offers superior shock and vibration resistance, removable terminal blocks, a durable polycarbonate housing, and compliance with international standards such as IEC, NEMA, UL, and CE, ensuring both long-term reliability and safety.

Q: Where can this base unit be mounted and what mounting options are available?

A: The unit is designed for both DIN rail and panel mount installations, providing versatility for different industrial environments and control cabinets.

Q: What packaging and shipping options are available for international delivery?

A: Your order will be securely packaged to prevent damage during transfer. We offer express shipping and dispatch from FOB ports in India, catering to major export markets worldwide.

Q: What is the process for installing and connecting inputs/outputs on this base unit?

A: The unit features removable screw terminal blocks for easy connection and replacement of 16 digital input and 12 relay output points. Status LED indicators simplify monitoring during setup and operation.
