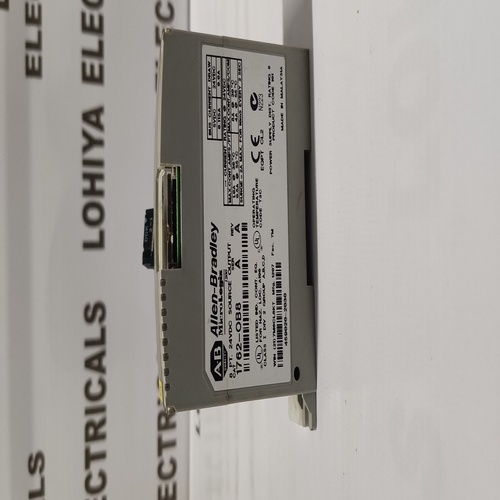

ALLEN BRADLEY 1762 OB8 MICROLOGIX DIGITAL OUTPUT MODULE

Get a Price/Quote

ALLEN BRADLEY 1762 OB8 MICROLOGIX DIGITAL OUTPUT MODULE Specification

Panel Type
DIN Rail Mount

Components
Solid State Relay Outputs

Connectivity Type
Removable Terminal Block

Cover Material
Plastic

Thickness
Compact Design (specific dimensions below)

Current Rating
0.5A (per channel)

Cabinet Material
Plastic

Protection Level
IP20

Protection Class
Class 1

Base Material
Plastic

Operating Voltage
24V DC

Control System
MicroLogix 1200/1100/1400 Compatible

Cooling System
Natural Air Cooled

Way
8 Points (Channels)

Rated Current
0.5A per channel

Rated Insulation Voltage
75V DC continuous

Features
Short circuit protection, Removable terminal block, Expandable

Rated Operation Voltage
24V DC

Product Type
Digital Output Module

Material
Plastic, Electronic Components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24V DC

Maximum Output Current
0.5A per channel, 4A per module

Dimension (L*W*H)
90 x 40 x 87 mm

Application
Industrial Automation, PLC Expansion

IP Rating
IP20

Display Type
LED Status Indicators

Ambient Operating Temperature
0°C to 55°C

Status Indicators
Per channel LED

Mounting
DIN Rail or Panel Mountable

Output Delay Time
On: 1.0 ms nominal, Off: 1.0 ms nominal

Wiring Connection
Screw clamp removable terminal block

Storage Temperature
-40°C to 85°C

Backplane Current (at 5VDC)
120 mA

Output Type
Sourcing (Current Sourcing, type PNP)

Weight
Approx. 200g

Module Description
8-Point Digital Output Expansion Module

Series
MicroLogix 1200/1100/1400 Series Expansion

Isolation Voltage
1500V AC (1 min) between field side and logic side

Part Number
1762-OB8

Relative Humidity
5% to 95% non-condensing

ALLEN BRADLEY 1762 OB8 MICROLOGIX DIGITAL OUTPUT MODULE About

Discover the popular and masterful ALLEN BRADLEY 1762-OB8 MicroLogix Digital Output Module, crafted for glorious industrial automation. For a limited time, grab yours and enhance your PLC system with this lofty, compact expansion module. Featuring eight current sourcing (PNP) outputs, superior 1500V AC isolation, and rapid 1 ms switching, it assures steadfast performance. Designed with removable terminal blocks, per-channel LED indicators, and short circuit protection, this IP20-rated unit mounts easily on DIN rails or panels. Compatible with MicroLogix 1200/1100/1400 Series, the 1762-OB8 boasts a robust build, reliable electronic components, and an exquisite matte grey finish.

Elevated Features & Versatile Applications

The ALLEN BRADLEY 1762-OB8 excels with short circuit protection, removable screw clamp terminal blocks, and individual channel LED status indicators. Its robust sourcing outputs are ideal for rapid switching in high-demand PLC expansions. Frequently used in industrial automation, discrete control, and process management, it suits diverse application mediamachinery controls, conveyors, and packaging lines. The modules compact design, combined with effective DIN rail or panel mounting, ensures seamless integration in complex control cabinets.

FOB Port, Packaging & Payment Details

Our ALLEN BRADLEY 1762-OB8 modules are dispatched promptly from the designated FOB port in sturdy, secure packaging. List price and asking price are available upon request, and all products are delivered with proper documentation to ensure safe transit. Payment terms are flexible, accommodating advance payments or other standard industry agreements. Each unit is thoroughly checked prior to shipment, allowing you to receive a reliable, ready-to-install module straight from our trusted supplier and trader network in India.

FAQs of ALLEN BRADLEY 1762 OB8 MICROLOGIX DIGITAL OUTPUT MODULE:

Q: What is the main output type and application of the ALLEN BRADLEY 1762-OB8 module?

A: The ALLEN BRADLEY 1762-OB8 offers current sourcing (PNP) digital outputs, making it ideal for industrial automation tasks and expanding PLC control systems in the MicroLogix 1200/1100/1400 series.

Q: How is the module installed and connected within a control panel?

A: The module supports DIN rail or panel mounting and connects with a removable screw clamp terminal block, making installation quick and easy in a variety of control cabinets.

Q: What extra features enhance the performance and safety of the 1762-OB8?

A: Key features include short circuit protection, individual channel LED status indicators, rapid 1 ms switching, high isolation voltage, and a secure removable terminal block for reliable connections.

Q: Where can this module typically be used?

A: The 1762-OB8 is widely used in industrial automation systems, including machinery controls, sorting systems, conveyor belts, and packaging lines, due to its robust and adaptable design.

Q: When will I receive my order and what are the payment terms?

A: Products are dispatched promptly upon order confirmation, with payment terms accommodating advance payments or standard industry agreements. Shipping and delivery are managed to ensure safe and timely arrival.
