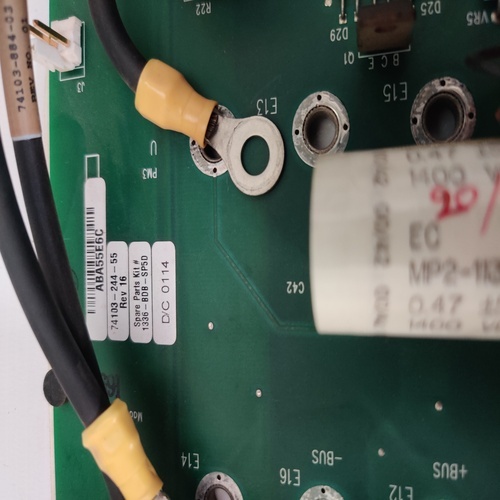

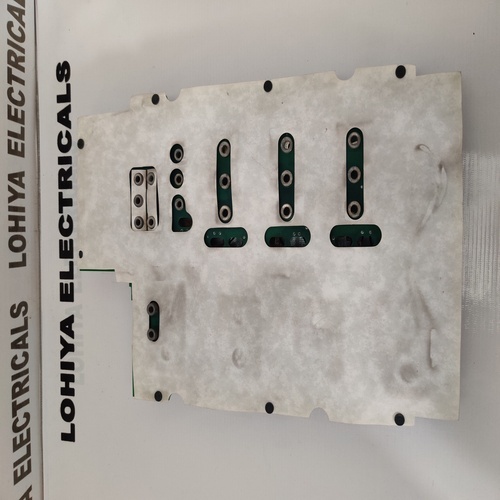

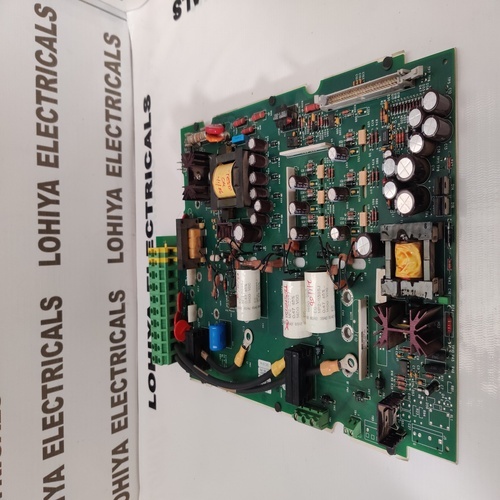

ALLEN BRADLEY 1336-BDB-SP5D PCB BOARD

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 1336-BDB-SP5D PCB BOARD Specification

Connectivity Type
Edge connectors, pin headers

Rated Insulation Voltage
>1kV

Panel Type
PCB board for VFD (Variable Frequency Drive)

Base Material
FR4 Epoxy Glass

Thickness
1.6mm

Rated Current
Up to 15A

Control System
Integrated with drive electronic system

Rated Operation Voltage
600V DC

Cover Material
None (as per standard PCB configuration)

Way
Multi-layer PCB

Features
Direct replacement for original Allen Bradley part, RoHS compliant, high reliability

Cooling System
Passive (via drives main cooling system)

Operating Voltage
600V DC max

Current Rating
Up to 15A

Protection Class
Class I (intended for use within a protected device/enclosure)

Cabinet Material
N/A (PCB board only)

Components
Surface-mounted and through-hole electronic components

Protection Level
PCB conforms to protection requirements in IP20 environment

Product Type
Electric Panel

Material
High-grade PCB with industrial-grade copper layers

Surface Finish
Lead-free HASL (Hot Air Solder Leveling)

Standard
Complies with original OEM requirements for Allen Bradley 1336 drives

Surface Color
Green

Rated Voltage
600V DC max

Frequency (MHz)
50/60Hz compatible systems

Maximum Output Current
Varies by drive rating, typical: 5A-15A

Dimension (L*W*H)
Approx. 270mm x 140mm x 20mm

Application
Replacement board for Allen Bradley 1336 drive system

IP Rating
IP20 (when installed in enclosure)

OEM Reference
Allen Bradley OEM/Factory replacement part

Supply Range
Supplied as a single board, no enclosure included

Board Code
1336-BDB-SP5D

Environmental Compliance
RoHS, lead-free

PCB Layer Count
4 layers

Mounting Type
Screw-mounted, fits original Allen Bradley panel slots

Humidity Tolerance
5% to 95% RH, non-condensing

Model Compatibility
Specifically designed for Allen Bradley 1336 Series Drives

Storage Condition
Store in anti-static and moisture-proof packaging

Operating Temperature Range
-10°C to +70°C

Typical Weight
Approx. 360 grams

Tested For
Functional quality test, insulation resistance test, high voltage test

Service Life
Designed for long-term industrial operation

Repairability
Can be serviced/replaced in field by qualified technician

About ALLEN BRADLEY 1336-BDB-SP5D PCB BOARD

Discover the top-rated ALLEN BRADLEY 1336-BDB-SP5D PCB BOARD, an enlightened solution for industrial drive control. Specifically designed as a triumphant, OEM-grade replacement for Allen Bradley 1336 Series Drives, this outstanding board integrates seamlessly into your system with screw-mounted compatibility and superior edge connectors. Constructed with high-grade FR4 epoxy glass and industrial copper layers, it delivers exceptional durability and operates reliably across a wide temperature and humidity range. Reserve yours today to ensure uninterrupted VFD performance. RoHS-compliant and field repairable, it provides long service life and unmatched dependability for mission-critical applications.

Special Features and Application Areas

The ALLEN BRADLEY 1336-BDB-SP5D PCB BOARD is engineered for excellence, featuring multi-layer construction and robust, industrial-grade copper. With direct OEM compatibility, it is ideal for variable frequency drive (VFD) applications in manufacturing facilities and process industries. This boards enlightened surface finish and resilient FR4 base material ensure consistent performance on original Allen Bradley panel slots, offering both reliability and ease of integration in stringent industrial environments.

Offer Rates, Certification & Shipping

We offer sample availability on the ALLEN BRADLEY 1336-BDB-SP5D PCB BOARD, allowing you to assess its functionality before full-scale application. Each board is thoroughly tested, RoHS certified, and ready to be shipped promptly across India. With outstanding supply capability, we ensure timely delivery and competitive rates for traders and suppliers. Trust our commitment to high quality and rapid fulfillment when you reserve this product for your next project.

FAQs of ALLEN BRADLEY 1336-BDB-SP5D PCB BOARD:

Q: How does the ALLEN BRADLEY 1336-BDB-SP5D PCB BOARD enhance industrial drive systems?

A: This PCB board offers seamless integration and optimal performance as an OEM-grade replacement part for Allen Bradley 1336 Series drives, ensuring long, reliable operation and compliance with rigorous industrial standards.

Q: What application areas are best suited for the 1336-BDB-SP5D PCB board?

A: The board is ideal for industrial environments using variable frequency drives (VFDs), commonly found in sectors such as manufacturing, process automation, and energy management.

Q: When should the 1336-BDB-SP5D board be replaced or serviced?

A: Replacement or servicing is recommended when your drive system exhibits signs of functional failure. Qualified technicians can easily swap this board in the field with minimal downtime.

Q: Where should this PCB board be stored prior to installation?

A: It should be stored in anti-static and moisture-proof packaging to protect electronic components and maintain functional integrity before installation.

Q: What process is used to ensure quality and compliance for each shipped board?

A: Each unit undergoes rigorous functional, insulation resistance, and high voltage tests, confirming compliance with OEM and RoHS standards before being shipped to customers.

Q: What are the main benefits of choosing this OEM replacement board?

A: Users benefit from exact fit, reliable operation, environmental compliance, easy installation, and robust support for long-term industrial performance.
