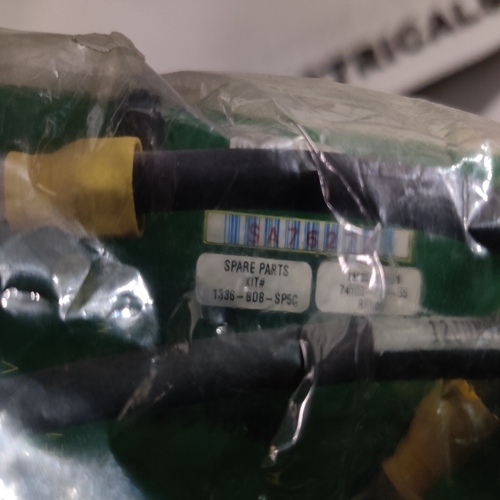

ALLEN BRADLEY 1336-BDB-SP5C DRIVES 1336 PCB BOARDS

Send Inquiry

Request To Call Back

ALLEN BRADLEY 1336-BDB-SP5C DRIVES 1336 PCB BOARDS

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 1336-BDB-SP5C DRIVES 1336 PCB BOARDS Specification

Rated Operation Voltage
480V AC

Panel Type
Control/Power Electronics PCB

Thickness
1.6 mm approx.

Base Material
FR-4 Epoxy Glass

Connectivity Type
Plug-in header and connector pins

Way
Multi-way terminal connections (refer to manual)

Control System
Microcontroller/logic circuit based

Components
Integrated circuits, semiconductors, relays, capacitors, resistors, connectors

Rated Insulation Voltage
600V

Protection Class
Class 1 (when inside certified drive)

Cover Material
None (bare PCB for internal assembly)

Current Rating
10A

Cabinet Material
Not applicable (PCB for internal use)

Operating Voltage
480V AC/DC

Rated Current
10A

Protection Level
Internal PCB (not directly rated, depends on drive enclosure)

Features
High reliability, OEM-approved, quick replacement, compact design

Cooling System
Relies on drives cooling convection & forced air (via drive)

Product Type
Electric Panel

Material
PCB (Printed Circuit Board), electronic-grade components

Surface Finish
Smooth, solder-masked finish

Standard
AB Quality Standard, conforms to Allen-Bradley drive specifications

Surface Color
Green (solder mask) with white silkscreen

Rated Voltage
600V DC max

Frequency (MHz)
50/60 Hz (operation with drive)

Maximum Output Current
10A

Dimension (L*W*H)
Depends on drive model typically 270 mm x 180 mm x 15 mm

Application
For Allen Bradley 1336 series VFD in industrial panels

IP Rating
As per drive enclosure typical drive IP20/IP21 rating

Display Type
Not applicable (PCB module)

Board Number
1336-BDB-SP5C

Weight
Approx. 0.35 kg

Installation
Internal PCB assembly for VFD

Storage Temperature Range
-40°C to 85°C

Operating Temperature Range
0°C to 60°C

Mounting
Screw and snap-in

Compatible Series
Allen Bradley 1336 PLUS, 1336 IMPACT drives

Service Life
Designed for long operational life in industrial environments

About ALLEN BRADLEY 1336-BDB-SP5C DRIVES 1336 PCB BOARDS

Experience inestimable reliability with the ALLEN BRADLEY 1336-BDB-SP5C PCB BOARD, tailored for first-string performance in Allen Bradley 1336 PLUS and 1336 IMPACT series drives. Designed for internal VFD assembly, this compact board weighs approximately 0.35 kg and boasts a glorious green solder mask finish. Manufactured to AB Quality Standards, it operates within a wide temperature range and supports up to 600V DC, 10A output. Offered at a Special Rate, its competitive pricing appeals to in-demand industrial applications requiring a long operational service life and seamless integration.

Application and Competitive Advantages

The ALLEN BRADLEY 1336-BDB-SP5C PCB BOARD is widely used in industrial control panels, specifically for Allen Bradley 1336 series VFD installations. Its primary advantages include high reliability, OEM approval, and first-string performance for quick replacements. With a compact footprint, it is used as both a control and power electronics solution, perfectly suiting high-demand environments where operational integrity matters most.

Export, Domestic Markets & Certifications

Supplied primarily to the Indian market, this PCB also reaches worldwide export destinations due to its robust certifications. The asking price is highly competitive, making bulk procurement attractive for global OEMs and traders. Estimate high demand in key industrial regions, with assured AB Quality Standard compliance for reliability. Certified according to Allen-Bradley specifications, it legitimizes safe supply to major domestic and export markets.

FAQs of ALLEN BRADLEY 1336-BDB-SP5C DRIVES 1336 PCB BOARDS:

Q: How is the ALLEN BRADLEY 1336-BDB-SP5C PCB BOARD installed in a drive system?

A: The 1336-BDB-SP5C PCB board is intended for internal assembly within Allen Bradley 1336 series VFDs, using screw and snap-in mountings as guided by the official drive and board manual.

Q: What are the primary applications for the 1336-BDB-SP5C PCB BOARD?

A: This board is mainly used in industrial control and power electronics panels, particularly for Allen Bradley 1336 PLUS and 1336 IMPACT drives as a part of their core electronic operations.

Q: When should this board be replaced in a drive system?

A: Replacement is recommended when the existing PCB shows signs of malfunction, wear, or upon scheduled maintenance, ensuring the continued reliable operation of VFD systems in demanding environments.

Q: Where can I source compatible 1336-BDB-SP5C PCB BOARDS?

A: These boards are available through industrial suppliers, traders, and authorized Allen Bradley distributors. They are supplied both in India and exported internationally.

Q: What benefit does the PCBs AB Quality Standard certification provide?

A: Certification to AB Quality Standards ensures the PCB is fully compatible and safe for use in Allen Bradley drives, supporting inestimable reliability and operational life in industrial settings.
