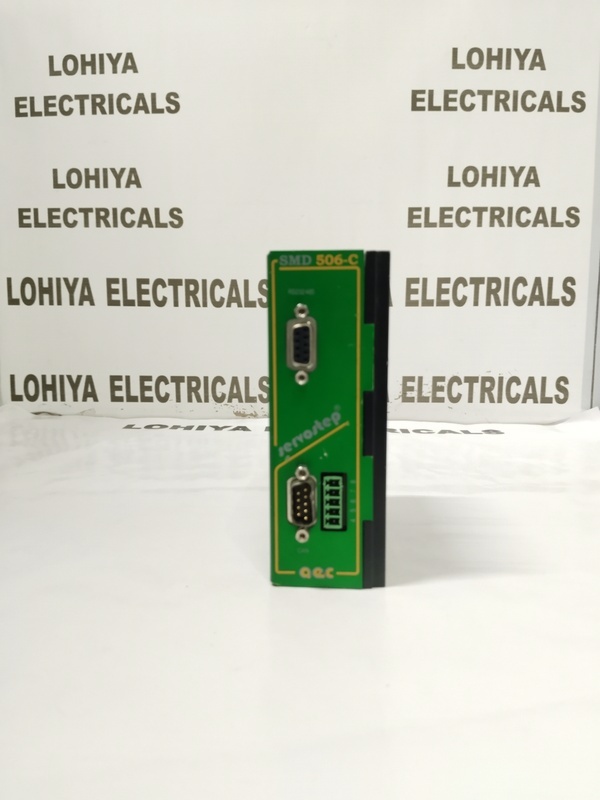

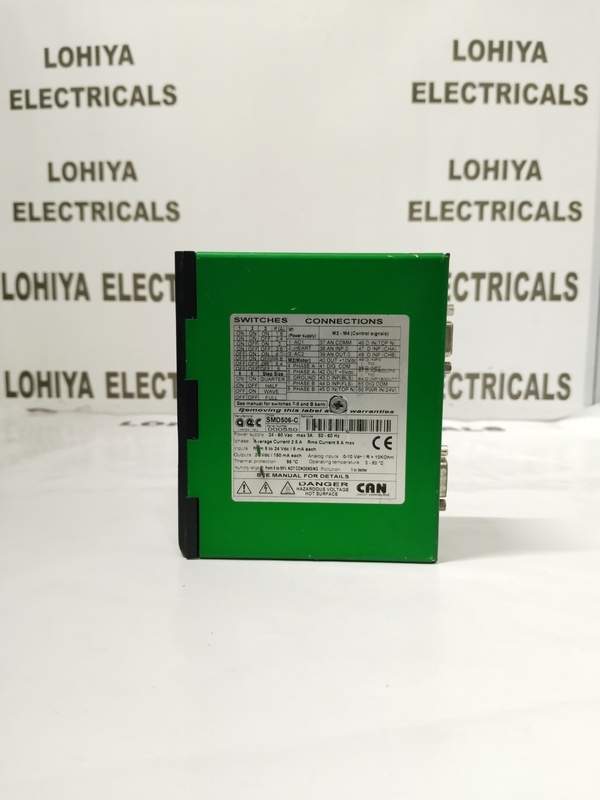

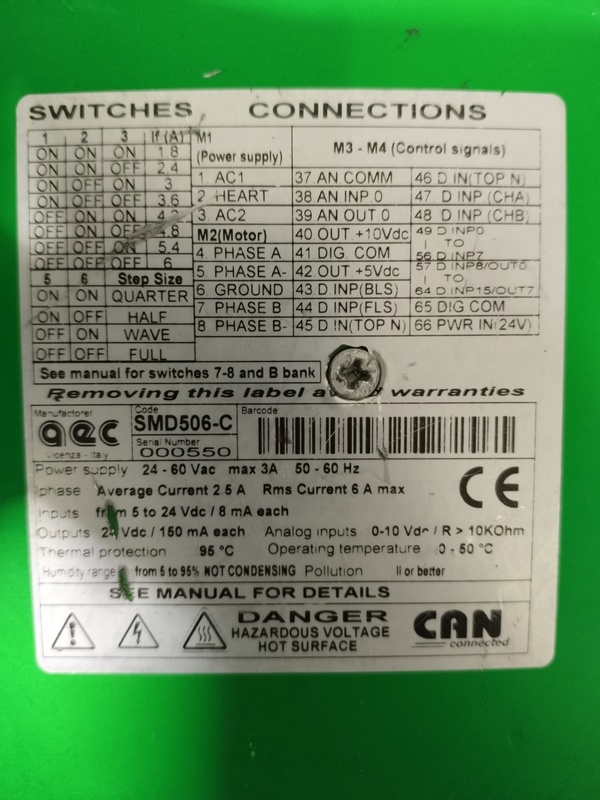

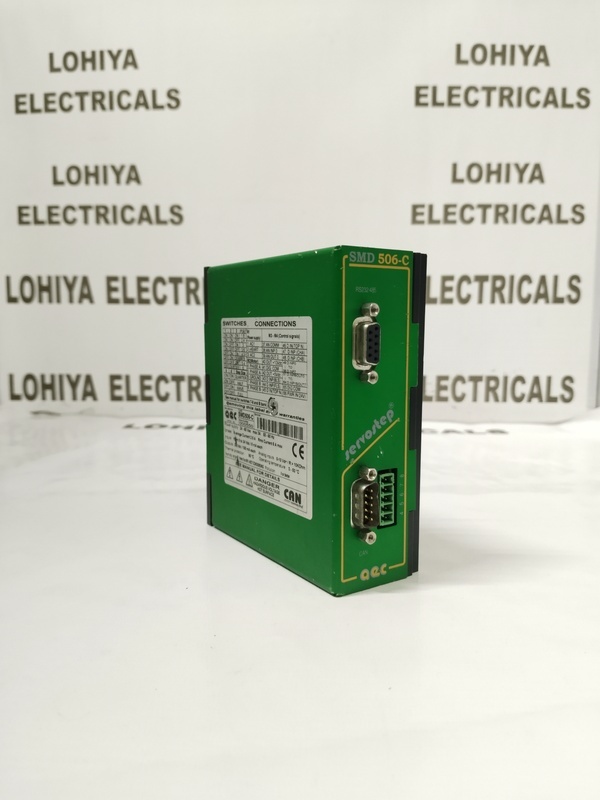

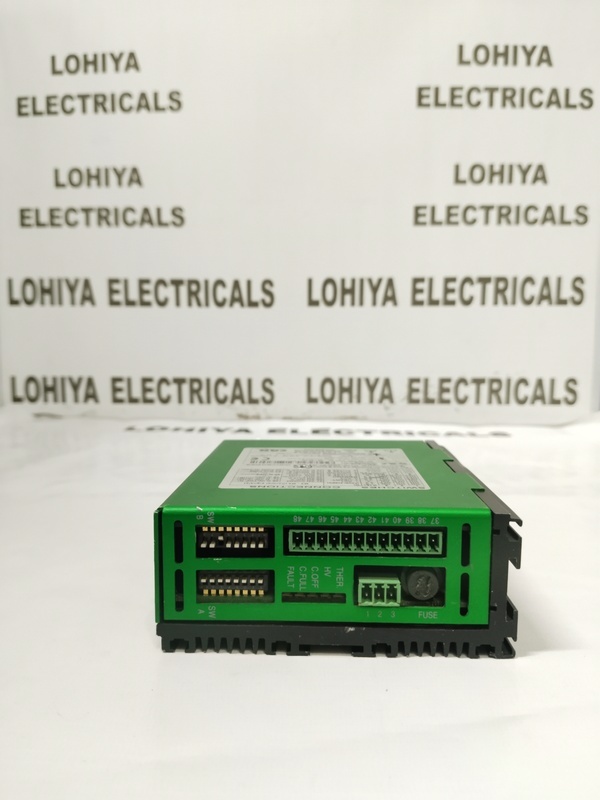

AEC SMD506-C STEPPER DRIVE

Get a Price/Quote

MOQ : 1 Piece

AEC SMD506-C STEPPER DRIVE Specification

Features
Microstepping, High-Speed Performance, Short Circuit Protection

Current Rating
5.0A

Cooling System
Aluminum Heat Dissipation

Way
Single Axis

Panel Type
Panel Mount

Rated Current
5.0A

Connectivity Type
Screw Terminal Block

Protection Class
Class I

Operating Voltage
24V DC

Cabinet Material
Metal

Components
Microcontroller, Power MOSFETs, Heat Sink

Base Material
Metal

Protection Level
Over Current, Over Voltage, Over Temperature

Rated Operation Voltage
24V DC

Cover Material
Metal

Control System
Pulse/Direction (PUL/DIR)

Thickness
Compact Design

Product Type
Stepper Motor Driver

Material
Metal

Surface Finish
Powder Coated

Standard
IEC Standard

Surface Color
Black

Rated Voltage
24V DC

Maximum Output Current
5.0A

Dimension (L*W*H)
118mm x 75.5mm x 34mm

Application
Industrial Automation, CNC, Robotics

IP Rating
IP20

Display Type
Status LED Indicators

Storage Temperature
-20°C to 65°C

Operating Temperature
0°C to 50°C

Input Signal Voltage
5V DC TTL Compatible

Digital Filtering
In-built Noise Filter

Humidity
<90%, Non-Condensing

Step Resolution
Up to 256 Microsteps/Full Step

Isolation
Opto-Isolator for Signal Input

Mounting Method
DIN Rail/Panel Mount

Suitable for Stepper Motor Nema
17, 23, 24

About AEC SMD506-C STEPPER DRIVE

Spotlight your automation projects with the matchless AEC SMD506-C STEPPER DRIVE, delivering first-rate performance for Nema 17, 23, and 24 stepper motors. With unprecedented microstepping up to 256 steps, integrated digital filtering, and built-in overcurrent, overvoltage, and temperature protection, it stands out as an affordable solution for industrial automation, CNC, and robotics. The compact, powder-coated metal chassis ensures durability, while DIN rail/panel mounting offers versatile installation. Order today to experience IEC-standard reliability and advanced control, tailored for Indian suppliers and traders.

Versatile Usage Across Industries

The AEC SMD506-C STEPPER DRIVE is specifically engineered for industrial automation, CNC machinery, and robotics. Suitable for environments demanding precise motor control, it excels in applications needing high-speed performance and robust protection. Its compatibility with Nema 17, 23, and 24 stepper motors makes it ideal for various automated systems, facilitating matchless efficiency and accuracy for manufacturers, engineers, and automation professionals.

Secure Payment & Global Shipping Solutions

Enjoy express shipping and streamlined logistics with all AEC SMD506-C STEPPER DRIVE orders. Our sample policy allows for product evaluations, and flexible payment terms ensure a smooth transaction process. Main export markets include Asia and beyond, with dedicated freight support for bulk orders. Partner with our trusted supplier network in India to benefit from reliable fulfillment and responsive customer service for every purchase.

FAQs of AEC SMD506-C STEPPER DRIVE:

Q: How does the AEC SMD506-C STEPPER DRIVE enhance motor performance?

A: The drive offers up to 256 microsteps per full step for unprecedented precision and smooth motion, optimizing performance in industrial tasks.

Q: What types of motors are compatible with this stepper drive?

A: The AEC SMD506-C is suitable for Nema 17, 23, and 24 stepper motors, ensuring flexibility in various automation and robotic applications.

Q: Where can the AEC SMD506-C STEPPER DRIVE be installed?

A: Installation options include DIN rail or panel mounting, allowing seamless integration into control cabinets or automation panels.

Q: What protection mechanisms are built into this stepper drive?

A: It features overcurrent, overvoltage, and overtemperature safeguards, as well as inbuilt noise filtering and short circuit protection for reliable operation.

Q: How is the purchasing process handled for international buyers?

A: International buyers benefit from express shipping, efficient logistics, and expert support throughout the freight and ordering process.

Q: What are the benefits of choosing this drive for industrial applications?

A: Key benefits include unmatched precision, high-speed performance, robust compatibility, and compliance with IEC standards, making it a dependable option for demanding environments.
