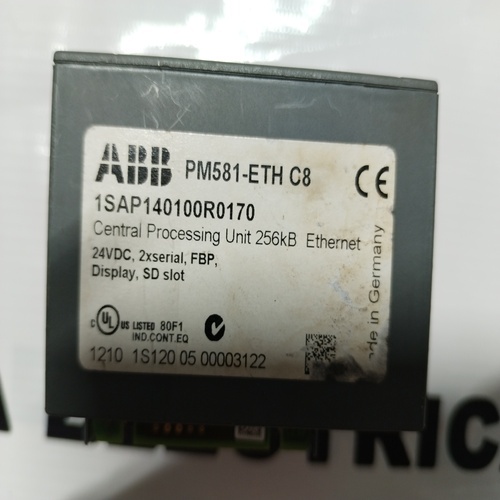

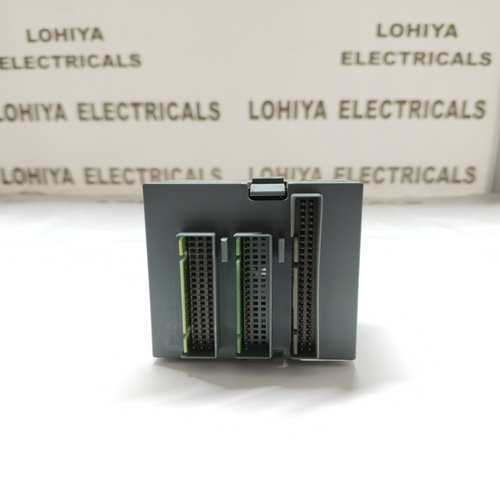

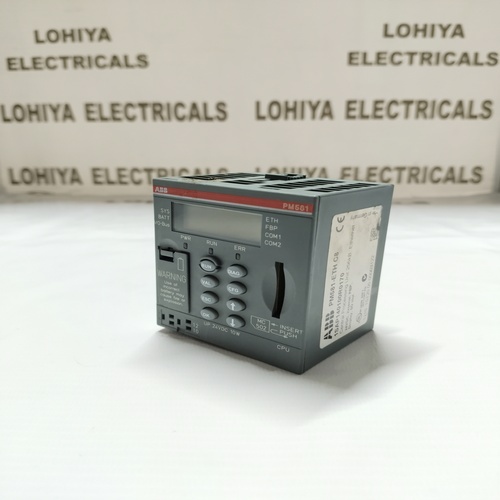

ABB PM581-ETH C8 1SAP140100R0170 PLC MODULE

Send Inquiry

Request To Call Back

ABB PM581-ETH C8 1SAP140100R0170 PLC MODULE

Get a Price/Quote

MOQ : 1 Piece

ABB PM581-ETH C8 1SAP140100R0170 PLC MODULE Specification

Features
High-performance PLC, integrated Ethernet port, modular design, hot-swappable modules

Protection Class
Class I

Thickness
88 mm

Operating Voltage
24 V DC

Connectivity Type
Ethernet, Serial Communication

Control System
Programmable Logic Control

Rated Insulation Voltage
50 V

Cooling System
Natural air cooling

Components
Main CPU, Ethernet interface, I/O connectors

Panel Type
Module Mounting

Way
8 channel

Rated Current
0.5 A per channel

Current Rating
0.5 A

Cover Material
ABS Plastic

Base Material
Reinforced thermoplastic

Protection Level
IP20

Rated Operation Voltage
24 V DC

Product Type
PLC Processor Module

Material
Industrial-grade polymer and high-strength metal alloy

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24 V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
500 mA

Dimension (L*W*H)
170 x 90 x 88 mm

Application
Automation control, industrial process control

IP Rating
IP20

Display Type
Status LED indicators

Vibration Resistance
1 g at 10...150 Hz

Expansion Capability
Supports I/O module expansion via S500 I/O modules

Ethernet Protocol Support
Modbus TCP, ABB CS31, IEC 60870-5-104

Communication Ports
1 x Ethernet (RJ45), 1 x Serial (RS232/RS485)

Processor
32-bit RISC with up to 4 MB user memory

Minimum Insulation Resistance
>500 M (500 V DC)

Mounting Type
DIN rail or panel mounting

Operating Temperature
0C to +60C

Power Consumption
Max 4 W

Relative Humidity
5% to 95% non-condensing

Weight
Approximately 450 g

Storage Temperature
-40C to +70C

About ABB PM581-ETH C8 1SAP140100R0170 PLC MODULE

Discover the ABB PM581-ETH C8 1SAP140100R0170 PLC Module, engineered for robust automation control and industrial process excellence. Experience the finest, industrial-grade quality with a lustrous, matte finish and potent 32-bit RISC processor providing up to 4 MB user memory. This trending solution boasts integrated Ethernet and serial connections, modular design, and hot-swappable capability, ensuring fresh adaptability for evolving needs. Achieve optimal performance at the best price, backed by superior vibration, insulation, and environmental resistance. Ideal for automation professionals seeking reliability and value in one compact unit.

Advanced Features and Versatile Plant Application

The ABB PM581-ETH C8 PLC Module stands out with high-performance integrated Ethernet ports, modular expansion via S500 I/O modules, and status LED indicators for real-time diagnostics. Designed for demanding industrial and plant automation systems, it seamlessly manages process control applications with maximum flexibility. Suitable for continuous operation, its rugged construction and natural air cooling ensure stability in varying usage environments, making it the perfect fit for both new installations and plant upgrades.

FOB Port, Payment Options, and Export Markets

Once your order for the ABB PM581-ETH C8 PLC Module is confirmed, it is carefully processed and handed over at key FOB ports in India for efficient export. Orders are shipped promptly upon completion, following secure payment terms such as advance TT or LC, depending on the agreement. This product is highly sought after in main export markets, spanning Asia, Africa, and the Middle East, providing quality automation solutions worldwide.

FAQs of ABB PM581-ETH C8 1SAP140100R0170 PLC MODULE:

Q: How do I install the ABB PM581-ETH C8 PLC Module?

A: You can install the ABB PM581-ETH C8 module using either a DIN rail or panel mounting method, ensuring flexibility for your industrial setup.

Q: What are the main benefits of using this PLC Module?

A: This PLC offers lustrous performance with a potent 32-bit RISC processor, integrated Ethernet and serial communication, modular expansion, and hot-swappable components, delivering reliable process automation and ease of maintenance.

Q: Where is this PLC module commonly used?

A: It is primarily used in industrial automation control and process control applications, making it ideal for manufacturing plants, processing factories, and other automated systems.

Q: What is the process for exporting this PLC module?

A: After order completion and payment confirmation, the module is handed over to designated FOB ports in India, then shipped to major export markets globally.

Q: When should I consider upgrading to this model?

A: Upgrade to this trending module when seeking fresh technology with the best price-performance ratio, especially if you require reliable operation, modular expansion, and advanced connectivity.
