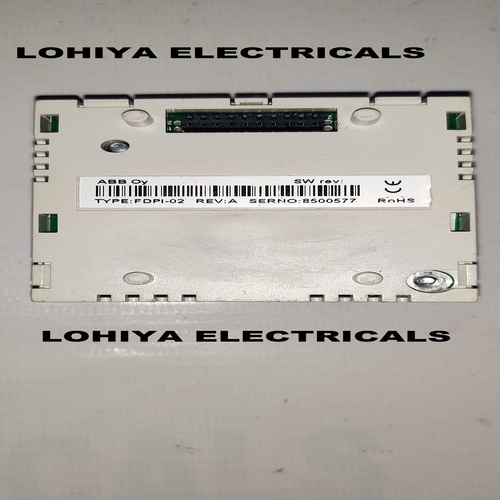

ABB FDPI-02 DIAGNOSTICS AND PANEL INTERFACE

Get a Price/Quote

MOQ : 1 Piece

ABB FDPI-02 DIAGNOSTICS AND PANEL INTERFACE Specification

Output
Diagnostic signals, Data to panel

Connectivity Type
RS485, TTL serial interface

Display
LED Indications

IP Rating
IP20

Features
Provides diagnostic information, Simple connectivity, LED status indicators

Installation Type
Panel Mounting

Mounting Type
Panel Mounted

Usage & Applications
Integrated with drive panels for diagnostics

Protection Level
Panel Mount, user accessible

Product Type
Diagnostic and Panel Interface Module

Operating Temperature
0C to +50C

Working Temperature
0C to +50C

Input
Fieldbus and Drive signals

Application
ABB Drives Diagnostics and Monitoring

Supply Voltage
24 V DC

Dimension (L*W*H)
Approx. 70 mm x 50 mm x 25 mm

Weight
Approx. 0.15 kg

Status Indication
Multi-color LED indicators for status and faults

Panel Interface
Provides interface between drive's diagnostics and external panel

Data Logging
Real-time diagnostic event monitoring

Enclosure Material
Plastic

Compatible Devices
ABB Low Voltage AC Drives

Part Number
FDPI-02

Communication Interface
Fieldbus viewer interface module for AC drives

Compliance Standards
CE Certified

About ABB FDPI-02 DIAGNOSTICS AND PANEL INTERFACE

Purchase the exclusive ABB FDPI-02 Diagnostics and Panel Interface, a formidable solution designed to champion your drive panel management. Grand in capability, this interface module supports real-time data logging and precise diagnostic event monitoring for ABB Low Voltage AC Drives. Featuring robust multi-color LED indicators and seamless connectivity via RS485 and TTL serial interfaces, the FDPI-02 guarantees reliable status indication and communication. With CE certification, panel mounting protection, and user accessibility, this sale-ready device ensures optimal diagnostic performance for industrial applications across India.

Versatile Usage & Key Application Features

ABB FDPI-02 is engineered for integrated diagnostics and monitoring in ABB drive panels. Its grand features include multi-color LED status indicators, simple connectivity, and an advanced panel interface. With formidable real-time event logging and compliance with CE standards, it excels in control rooms, industrial panels, and automation sectors. Operators benefit from instant fault identification and seamless panel-to-drive communication, making it an essential asset in diverse ABB AC drive applications.

Sample Availability, Terms & Packaging Details

Stock is ready for immediate handover, ensuring swift procurement of the ABB FDPI-02 interface at your proposal amount. Upon confirmation, samples are available for evaluation. Payment terms are flexible, typically with standard credit arrangements for traders and suppliers across India. Devices are securely packaged in robust containers to prevent damage in transit, and ready for installation upon delivery to your site.

FAQs of ABB FDPI-02 DIAGNOSTICS AND PANEL INTERFACE:

Q: How does the ABB FDPI-02 Diagnostics and Panel Interface enhance drive panel monitoring?

A: The ABB FDPI-02 provides real-time diagnostic event monitoring and multi-color LED status indications, allowing operators to quickly detect and resolve drive faults for optimal system efficiency.

Q: What is the process for panel mounting the FDPI-02 module?

A: Panel mounting is straightforward: simply position the module on the designated panel surface, secure it according to the installation guidelines, and connect using RS485 or TTL serial interface for reliable communication.

Q: Where can the ABB FDPI-02 be used?

A: This module is ideal for ABB Low Voltage AC Drives in industrial automation panels, manufacturing sites, control rooms, and places requiring centralized diagnostic monitoring.

Q: When are samples of ABB FDPI-02 available for purchase?

A: Samples are available for evaluation when stock is ready; contact your supplier to confirm availability and arrange prompt handover at the proposal amount.

Q: What are the benefits of using LED status indicators on this device?

A: Multi-color LED indicators provide clear and rapid status and fault visualization, simplifying maintenance and minimizing downtime in industrial settings.

Q: How does the ABB FDPI-02 ensure compliance and safety?

A: The device is CE certified, built with durable plastic enclosure, and features IP20 protection, ensuring safety for panel mounting and adherence to international standards.
