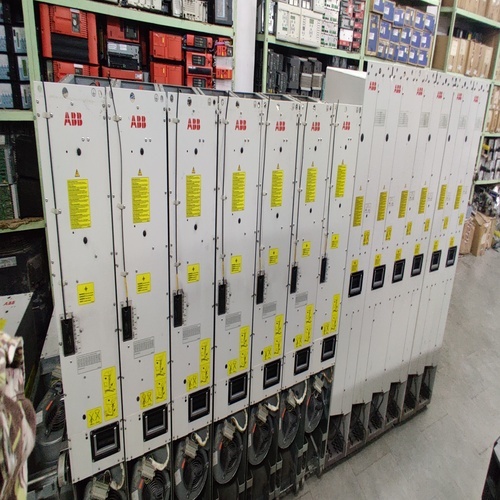

ABB DRIVE ACS800-704-0910-7+0F253

Get a Price/Quote

ABB DRIVE ACS800-704-0910-7+0F253 Specification

Application
Industrial Motor Control, Pump, Fan, and Conveyor Applications

Rated Power
1000 kW

Phase
3 Phase

Working Temperature
-10C to +40C (up to +55C with derating)

Output Current
910 A

Output Type
Three-Phase AC

Noise Level
75 dB(A)

Cooling Method
Air Cooled (Integral Fans)

Connector Type
Terminal Block Connections

Features
Direct Torque Control (DTC), Built-in EMI filter, Safe Torque Off (STO), Programmable I/O, User-friendly Control Panel

Power Factor
0.98 (at nominal load)

Operating Temperature
-10C to +40C

Power Supply
AC Supply, 3-Phase

Rated Current
910 A

Current Range
0 to 910 A

Product Type
ABB DRIVE ACS800-704-0910-7+0F253

Output Power
1000 kW (1340 HP)

Output Frequency
0 to 500 Hz

Input Voltage
525-690 V AC

Voltage Protection
Overvoltage and Undervoltage Protection

Efficiency
Up to 98%

Material
Industrial Grade Components

Line Regulation
0.5%

Storage Temperature
-40C to +70C

Weight
1430 kg

Frequency
50/60 Hz

Service Availability
Global ABB Service Network

Braking Unit
Optional Built-in Braking Chopper

Mounting Type
Floor Standing

Communication Interface
Modbus, Profibus, Ethernet (Optional)

Control Method
Vector and V/Hz control

Enclosure Protection
IP00 (Open Type Construction)

Humidity Range
5% to 95% (non-condensing)

Display
Graphical Control Panel

About ABB DRIVE ACS800-704-0910-7+0F253

ABB DRIVE ACS800-704-0910-7+0F253

Ordering

Core Credit:0.00

Country of Origin:Finland (FI)

Estonia (EE)

Customs Tariff Number:85044088

Invoice Description:DSU, D4, 380 - 690V 910kVA (115V,230V) ACS800-704-0910-7+0F253+V992

Made To Order:Yes

Minimum Order Quantity:1 piece

Order Multiple:1 piece

Part Type:New

Quote Only:No

Selling Unit of Measure:piece

Stocked At (Warehouses):FIPSEEXPU

US Drive Services

SGRDC002EXPU

CNIAB001EXPU

SGIND002EXPU

AUABB024EXPU

Dimensions

Product Net Height:1480 mm

Product Net Length:400 mm

Product Net Weight:180 kg

Product Net Width:234 mm

Technical

Technical Information:976 KVA 690V 816A(AC)

Additional Information

Product Main Type:ACS800-X04

Product Name:Supply module

Type- Supply module

ID- 3AUA0000060663

Weight- 180 kg

Produced in-Finland Estonia

ustoms Tariff Code- 85044088

Name- ACS800-704-0910-7+0F253+V992

Dimensions- 1480 mm x 400 mm x 234 mm

Item Name- Supply module

Item Type- ACS800-X04

Advanced Motor Control and Protection

Benefit from precise operation using Vector and V/Hz control methods, ensuring accurate speed and torque management even for challenging industrial applications. Integrated voltage protection safeguards both the drive and connected motors, while Direct Torque Control (DTC) delivers consistent performance under fluctuating loads.

Flexible Operation and Communication

The ACS800-704-0910-7+0F253 drive offers versatile communication options, including Modbus, Profibus, and optional Ethernet connectivity. The graphical control panel and programmable I/O provide intuitive management, making configuration and monitoring straightforward across complex systems.

Robust Design for Varied Environments

Engineered for durability, this unit operates efficiently within wide temperature and humidity limits. Air-cooled integral fans and built-in EMI filtering enhance system reliability, while the industrial-grade components ensure longevity under tough conditions.

FAQs of ABB DRIVE ACS800-704-0910-7+0F253:

Q: How does the ABB ACS800-704-0910-7+0F253 ensure reliable motor control in industrial applications?

A: The drive utilizes both Vector and V/Hz control methods, along with Direct Torque Control (DTC), for precise speed and torque management of motors, supporting consistent operation across pumps, fans, and conveyors.

Q: What is the process for connecting the ACS800-704-0910-7+0F253 to a control network?

A: It can be integrated via Modbus, Profibus, or optional Ethernet interfaces. Terminal block connections allow for secure wiring, and the graphical control panel streamlines configuration and monitoring.

Q: Where can the ACS800-704-0910-7+0F253 be installed, and what are its mounting requirements?

A: This model is designed for floor-standing installation in industrial environments. Its open-type IP00 enclosure is suitable for locations with proper protective measures and controlled access.

Q: What efficiency and voltage protection features does this drive offer?

A: The drive operates with up to 98% efficiency and incorporates both overvoltage and undervoltage protection, ensuring drive and motor safety during electrical disturbances.

Q: When is it recommended to use the optional braking unit in this drive?

A: The built-in braking chopper is recommended for applications involving rapid deceleration or heavy loads, such as conveyors and large fans, where brake energy needs to be safely dissipated.

Q: How does the ACS800 handle different environmental conditions?

A: It is designed to operate at temperatures from -10C to +40C (up to +55C with derating) and within a humidity range of 5% to 95% non-condensing, ensuring reliable performance across various industrial settings.

Q: What types of motors and applications is this drive suitable for?

A: The ACS800 is ideal for three-phase AC motor control in industrial motor, pump, fan, and conveyor applications, offering programmable I/O and user-friendly features for extended versatility.
