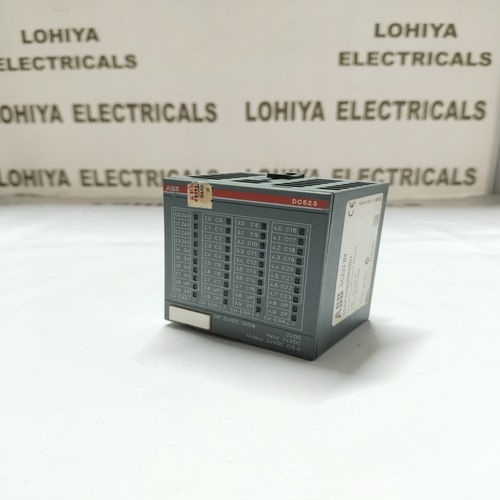

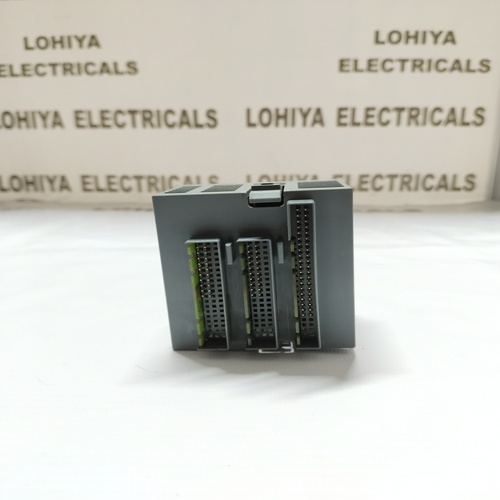

ABB DC523 B4 1SAP240500R0001 PLC MODULE

Get a Price/Quote

MOQ : 1 Piece

ABB DC523 B4 1SAP240500R0001 PLC MODULE Specification

Base Material
Plastic

Features
Modular, Expandable, High Reliability

Connectivity Type
Screw Terminal Block

Rated Operation Voltage
24 V DC

Operating Voltage
24 V DC

Cooling System
Passive

Control System
Programmable Logic Controller (PLC)

Rated Current
0.5 A (per channel)

Panel Type
Mountable (DIN Rail)

Way
Single

Cover Material
Plastic

Current Rating
0.5A (per channel)

Protection Class
Class II

Rated Insulation Voltage
500 V AC

Protection Level
IP20

Thickness
Standard Module Thickness

Components
Integrated Circuit, Terminals

Product Type
PLC Module

Material
Plastic, Electronics

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
500 mA

Dimension (L*W*H)
120mm x 63mm x 110mm

Application
Industrial Automation

IP Rating
IP20

Display Type
LED Indicators

Power Dissipation
Max 3 W

Response Time
< 1ms

Operating Temperature Range
0°C to +55°C

Number of Digital Inputs
16

Storage Temperature Range
-25°C to +70°C

Mounting Type
DIN Rail Mount

Relative Humidity
5% to 95% (non-condensing)

Number of Digital Outputs
16

Module Family
ABB DC520 Series

Input Type
Digital

About ABB DC523 B4 1SAP240500R0001 PLC MODULE

Featured for industrial automation, the ABB DC523 B4 1SAP240500R0001 PLC MODULE offers a kingly combination of high reliability and modular expandability. Capitalise on its decorated reputation within the pivotal ABB DC520 Series, providing 16 digital inputs and outputs for efficient control. Mount with ease on DIN rails and benefit from a special rate of power dissipation at just 3 W. With IEC 61131-2 compliance and a matte grey finish, it ensures optimum operation at temperatures ranging from 0C to +55Cmaking it indispensable for advanced control panels.

Application Excellence for Industrial Automation

The ABB DC523 B4 1SAP240500R0001 PLC MODULE is designed for surface mounting in rigorous industrial environments. Used for precise process control and automation tasks, its essential as a central component in automated production lines. The module acts as a robust Programmable Logic Controller, enhancing productivity and operational consistency in applications that require reliable and fast digital input/output processing.

Seamless Logistics and Delivery Assurance

ABB offers an adaptable sample policy for the DC523 B4 PLC MODULE, making evaluation efficient. Supply ability meets high-volume demand, ensuring consistent availability. With express shipping options and secure drop-off services, products reach clients swiftlysupported by coordinated logistics for prompt delivery, typically within standard lead times. This approach helps minimize downtime and ensures clients can integrate modules into automation systems without delay.

FAQs of ABB DC523 B4 1SAP240500R0001 PLC MODULE:

Q: How does the ABB DC523 B4 PLC MODULE enhance industrial automation?

A: The module improves automation by offering 16 digital inputs and outputs, enabling swift and reliable process control for machinery and production systems.

Q: What is the operating temperature range of this PLC module?

A: The ABB DC523 B4 operates effectively between 0C and +55C, making it suitable for most industrial settings.

Q: Where can the PLC module be mounted for optimal use?

A: It is designed for DIN rail mounting, providing secure, accessible installation within control panels.

Q: What is the sample policy for the ABB DC523 B4 PLC MODULE?

A: Clients can request samples for testing and suitability evaluation before committing to larger orders, ensuring confidence in system compatibility.

Q: When can customers expect delivery after placing an order?

A: With express shipping and efficient logistics, typical delivery times are minimizedensuring fast drop-off, often within the standard industrial product lead time.
