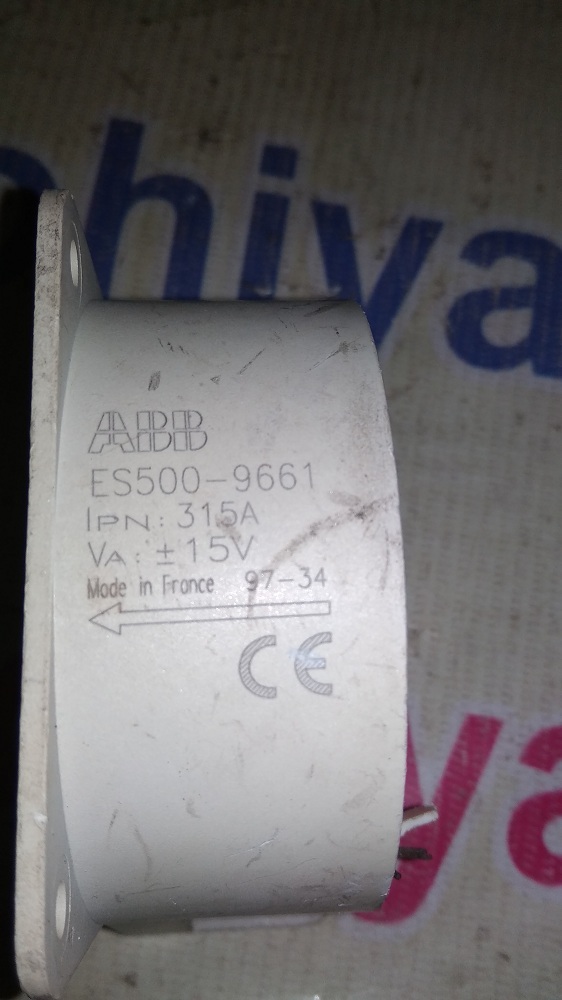

ABB CURRENT TRANSFORMER ES500-9661

Get a Price/Quote

ABB CURRENT TRANSFORMER ES500-9661 Specification

Mounting Type
Base Mounting

Humidity %
Up to 95% RH

Operating Temperature
-5 to +40 C

Surface Finish
Molded

Connector Type
Screw Terminal

Insulation Material
Epoxy Resin

Feature
High Accuracy, Compact Design

Overheating Protection
NO

Shape
Rectangular

IP Rating
IP55

Product Type
Current Transformer

Application
Measuring and Protection

Protection Level
IP55

Frequency (MHz)
50/60 Hz

Rated Voltage
0.72 kV

Output Type
Secondary 5A / 1A

Color
Gray

Dimension (L*W*H)
350 x 160 x 110 mm

Weight
5 kg

Size
500/5A Ratio

Input Voltage
Up to 0.72 kV

Phase
Single Phase

No Of Poles
1

Material
Epoxy Resin

Connection Type
Terminal

About ABB CURRENT TRANSFORMER ES500-9661

The ABB CURRENT TRANSFORMER ES500-9661 is a hot-selling marvel, now available at a reduced price! Its phenomenal features include an accuracy class of 1.0, IEC 61869-2 standard, and a primary current of 500A with a remarkable secondary current of 5A or 1A. With a wound core and robust epoxy resin body, it is engineered for measuring and protection applications. Its magnificent compact design ensures efficient base mounting and a molded surface finish. Grab this transformer today and experience high accuracy, safety, and reliability in a single-phase, IP55-rated unit.

Versatile Application and Usage

The ABB CURRENT TRANSFORMER ES500-9661 is extensively used for measuring and protective functions in electrical systems. Commonly installed in switchboards, control panels, and substation environments, its single-phase operation and compact, base-mounted design make application and integration simple. Just connect using the screw terminal, ensuring stable terminal markings (K-L/P1-P2) for dependable performance. Its ideal for industrial, commercial, and utility sectors where precise current measurement and system protection are essential.

Flexible Payment, Secure Packaging, and Prompt Transportation

We offer convenient payment terms to streamline your order processing for the ABB CURRENT TRANSFORMER ES500-9661. Each unit is securely packaged to ensure it reaches you in pristine condition, and transportation is arranged quickly to expedite delivery. Our main domestic market covers a wide range of regions, making the ordering process smooth and efficient. Place your order today and enjoy reliable service from procurement to installation.

FAQs of ABB CURRENT TRANSFORMER ES500-9661:

Q: How is the ABB CURRENT TRANSFORMER ES500-9661 used in electrical systems?

A: The ES500-9661 is used for measuring and protection, converting high primary current into a manageable secondary current for meters and protective relays.

Q: What are the key benefits of using this transformer?

A: Benefits include high accuracy, robust epoxy resin construction, compact size for easy installation, and reliable performance under demanding conditions.

Q: Where can the ABB ES500-9661 be installed?

A: It is suitable for installation in switchboards, control panels, and substations across industrial, commercial, and utility applications.

Q: What is the process for ordering and receiving this product?

A: Simply place an order, and after payment processing, the unit will be carefully packaged and transported efficiently to your designated address.

Q: What protection features does the transformer offer?

A: It has an IP55 protection level, ensuring resistance to dust and water, making it suitable for harsh environments, though there is no overheating protection.

Q: When is it recommended to use this transformer?

A: Use it when high-accuracy current measurement and reliable protection are required in single-phase electrical networks with primary currents up to 500A.
