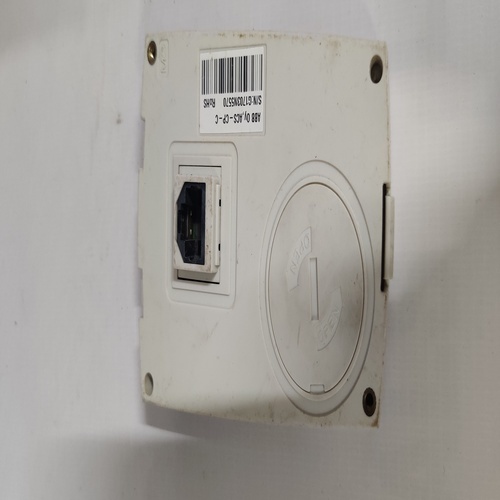

ABB ACS CP C OPERATOR PANEL FOR USE WITH ACS310 SERIES ACS350 SERIES ACS355 SERIES ACS510 SERIES ACS550 SERIES

Get a Price/Quote

ABB ACS CP C OPERATOR PANEL FOR USE WITH ACS310 SERIES ACS350 SERIES ACS355 SERIES ACS510 SERIES ACS550 SERIES Specification

Cabinet Material
Plastic

Base Material
Plastic

Cooling System
Passive

Operating Voltage
24 VDC

Features
Menu navigation, parameter setting, status display, detachable for remote use

Connectivity Type
Panel connection cable (RJ-type / modular)

Rated Current
Logic current only

Way
Multi-way interface

Protection Level
IP54 (front panel)

Components
LCD Display, Menu Navigation Keys, Connection Cable

Current Rating
Logic current only

Panel Type
Detachable keypad / operator panel

Cover Material
Polycarbonate

Rated Operation Voltage
24 VDC

Control System
VFD User Interface

Protection Class
Class II

Thickness
Approx. 2 cm

Product Type
Operator Panel

Material
Polycarbonate / ABS (high-impact plastic)

Surface Finish
Matte

Standard
ABB ACS Series Compatibility

Surface Color
Grey

Rated Voltage
24 VDC (via drive panel connection)

Maximum Output Current
Logic-level communication, limited by drive port

Dimension (L*W*H)
Approx. 110 mm x 80 mm x 40 mm

Application
For use with ABB ACS310 / ACS350 / ACS355 / ACS510 / ACS550 Series Drives

IP Rating
IP54 (front)

Display Type
Backlit LCD Display

About ABB ACS CP C OPERATOR PANEL FOR USE WITH ACS310 SERIES ACS350 SERIES ACS355 SERIES ACS510 SERIES ACS550 SERIES

Unlock prodigious control with the ABB ACS CP C Operator Panel, designed exclusively for ABB ACS310, ACS350, ACS355, ACS510, and ACS550 drive series. In clearance now and featured as a crackerjack solution, this invincible operator panel is easily door/panel mountable or hand-held for utmost flexibility. Benefit from a user-friendly, keypad-driven programming method and a crisp, 2-line by 16-character backlit LCD. With multi-language support, navigation buttons, robust polycarbonate/ABS build, IP54 front protection, and reverse polarity shield, impeccable performance is assured. Try nowstock ready for fast dispatch.

How to Use & Unique Features

The ABB ACS CP C Operator Panel attaches directly to your VFD, offering seamless direction of use via intuitive menu navigation keys and a convenient detachable keypad. Special features include remote/local selection, LED-backlit multi-language display, and robust protection (IP54 front). Its menu-driven interface simplifies parameter entry, while its light weight and inclusive connection cable ensure hassle-free setup. Ideal for configuring, monitoring, and managing compatible ABB drive systems with precision and reliability.

Domestic Availability, Packaging, and Payment

This invincible ABB operator panel has a strong valuation in Indias main domestic market, with packaging ensuring full protection against charge or shipping damage. The products are presented with stock ready for prompt delivery. Each panel comes boxed with a connection cable and quick start guide. Flexible payment terms are available, making procurement smooth and efficient for organizations seeking superior VFD interface panels in bulk or individual units.

FAQs of ABB ACS CP C OPERATOR PANEL FOR USE WITH ACS310 SERIES ACS350 SERIES ACS355 SERIES ACS510 SERIES ACS550 SERIES:

Q: How do I install the ABB ACS CP C Operator Panel on my drive?

A: Simply mount the panel on your drives door or panel, or use it as a handheld device. Attach the included connection cable to the modular port, following the quick start guide for optimal setup.

Q: What drives are compatible with this operator panel?

A: The panel is fully compatible with ABB ACS310, ACS350, ACS355, ACS510, and ACS550 series drives, providing versatile integration across various ABB VFD models.

Q: What are the special features of the ABB ACS CP C Operator Panel?

A: Notable features include a detachable keypad, multi-language support, backlit LCD display, IP54 front protection, reverse polarity safety, and logic-level communication through an RJ-type connection cable.

Q: Where can this product be used effectively?

A: It is best suited for industrial automation environments, control cabinets, and panels utilizing ABB ACS series drives, ensuring convenient access and configuration even in challenging settings.

Q: What are the main usage benefits of this operator panel?

A: Users gain reliable, swift parameter setting, easy monitoring, and flexible control (local or remote), enhancing operational efficiency and simplifying maintenance for ABB drive systems.
