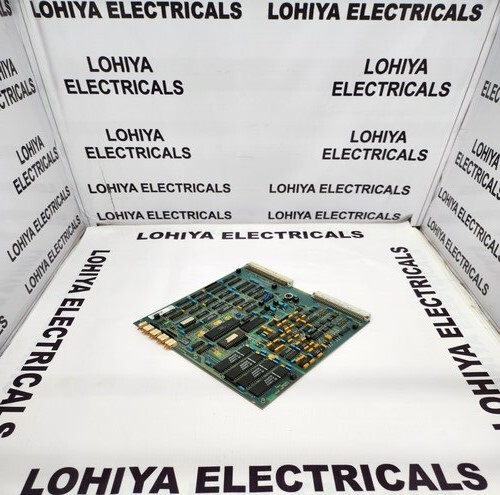

ABB 1MRK002247-AAr00 PCB CARD

Get a Price/Quote

MOQ : 1 Piece

ABB 1MRK002247-AAr00 PCB CARD Specification

IP Rating
IP00 (Open PCB)

Overheating Protection
No Dedicated Protection

Power Factor
NA (Not applicable for PCB cards)

Shape
Rectangular

Efficiency
Passive Not rated

Insulation Material
Fiberglass Epoxy

Connector Type
Edge Connector

Humidity %
5% to 95% RH (Non-condensing)

Surface Finish
Solder Masked, Silkscreen Labeling

Mounting Type
Plug-in/Slot-in

Operating Temperature
-20C to +70C (Typical)

Feature
Multi-layered, SMD and Through-hole Technology

Product Type
PCB Card

Application
Protection Relay Systems, Industrial Automation

Protection Level
Standard Circuit Protection

Rated Voltage
24 V DC (Typical for PCB Control Circuits)

Energy Consumption
Low (Passive card)

Output Type
Signal/Data Transmission

Color
Green

Dimension (L*W*H)
22 cm x 6.8 cm x 1.6 cm (Approximate)

Weight
240 g

Size
Standard PCB size per image

Input Voltage
24 V DC (nominal, reference)

Connection Type
Edge Connector, Solder Pins

Material
High-grade PCB Fiberglass

Packaging Type
OEM sealed box

Quality Approval
ABB Factory Tested

Compatible Equipment
Relay ABB REG670/REF542 Plus

Storage Temperature Range
-20C to +80C

Model Number
1MRK002247-AAr00

Pin Configuration
As per ABB datasheet

RoHS Compliance
Yes

Life Expectancy
>20 years (under normal usage)

Maintenance
No preventive maintenance required

PCB Layer
Multi-layer

Signal Type
Digital/Analog

About ABB 1MRK002247-AAr00 PCB CARD

Take advantage of the ABB 1MRK002247-AAr00 PCB Carda sought-after solution for protection relay systems and industrial automation. This world-class, multi-layered card is crafted from high-grade PCB fiberglass for first-rate reliability. Housed in an OEM sealed box and factory tested by ABB, it assures superior build quality and over 20 years of life expectancy. Compatible with ABB REG670/REF542 Plus relays, its digital/analog signal capabilities and effortless slot-in mounting make it a top choice for engineers seeking peak performance. Get it now for industrial efficiency!

Unrivaled Machine Features & Industrial Applications

The ABB 1MRK002247-AAr00 PCB Card boasts multi-layered SMD and through-hole technology, ensuring reliable performance in demanding conditions. Designed for protection relay systems, it supports both digital and analog signals for versatile application media. Its robust construction using fiberglass epoxy offers long life and dependable efficiency. Advantages include plug-in/slot-in installation, no preventive maintenance required, and exceptional compatibility with ABB REG670/REF542 Plus. Experience a top-tier solution for your industrial automation needs.

Packaging, Dispatch, and Commercial Terms

Packing & Dispatch are handled with precisioneach ABB 1MRK002247-AAr00 comes in a secure OEM sealed box for maximum protection during transit. List price and asking price are available upon request from authorized suppliers and traders in India. Payment terms are flexible to suit various procurement needs, while supply ability is maintained at industry-leading levels to ensure timely order fulfillment. Trust ABB for seamless delivery and consistent availability of this sought-after PCB card.

FAQs of ABB 1MRK002247-AAr00 PCB CARD:

Q: How do I install the ABB 1MRK002247-AAr00 PCB Card in my relay system?

A: The card is designed for plug-in or slot-in mounting, making it easy to install in compatible relay systems such as ABB REG670/REF542 Plus using the standard edge connector and solder pins.

Q: What is the main application of the ABB 1MRK002247-AAr00 PCB Card?

A: This PCB card is primarily used in protection relay systems and industrial automation, efficiently transmitting digital and analog signals for control and monitoring applications.

Q: Where is this PCB card sourced and supplied from?

A: The ABB 1MRK002247-AAr00 PCB Card is available through authorized suppliers and traders across India, ensuring accessibility for industrial clients nationwide.

Q: What are the benefits of choosing this world-class ABB PCB card?

A: Benefits include proven ABB factory testing, RoHS compliance, long life expectancy (over 20 years), no preventive maintenance, and compatibility with top ABB relay models.
